Radiant Heaters

The Pure Plus suits fully exposed outdoor installations, Vision minimises visible light for sheltered alfresco dining, Next covers semi-open and indoor-outdoor transitions, and Spot provides compact, targeted directional warmth. Weather-resistant requirements are the primary filter.

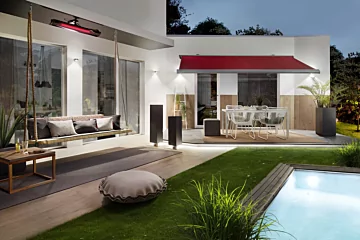

Pure Plus is the definitive choice for open-air patios, pool surrounds, and unroofed terraces. It carries the highest weatherproof rating in the range (IP65) and uses a convex SCHOTT NEXTREMA glass-ceramic front that spreads sun-like warmth evenly while softening the visible glow.

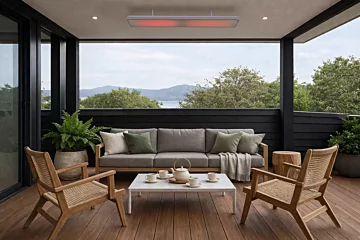

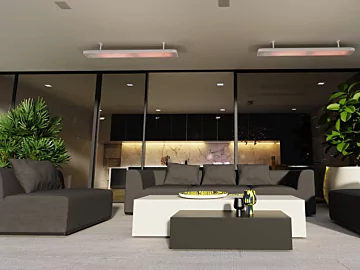

For covered alfresco rooms, loggias, and sheltered dining zones where atmosphere matters alongside warmth, Vision is the model to consider. Its ceramic glass front reduces visible light to a minimum, creating the most ambient footprint of the range at 3,200W, the highest heat output in the lineup.

Next suits semi-open terraces, verandahs, and spaces that shift between indoor and outdoor use. Its slim aluminium profile fits flush to wall and ceiling surfaces without visual bulk.

Spot concentrates directional infrared on a specific zone, a balcony, a covered nook, or a set of seats, and comes in two output levels to match the space.

Every range includes two-stage output control and a 2-year warranty. ZigBee smart control is available as an optional accessory on most models.

• HEATSCOPE® radiant heaters draw between 6.96 and 13.91 amperes at full power, depending on the wattage rating of your model. The Spot 1600W draws 6.96A; the Spot 2800W draws 12.17A; the Vision 3200W and Pure 3000W both draw approximately 13A at 100% power.
  ⁠All HEATSCOPE® models operate on 220–240V single-phase supply at 50–60Hz. Most models feature dual power stages, which means you can also run them at 50% power; at this setting, the current draw reduces proportionally. For example, a Vision 3200W operating at 50% would draw roughly 6.95A instead of the full 13.91A.These specifications are essential for circuit planning. Confirm your installation supports the required amperage with a qualified electrician before commissioning the heater.

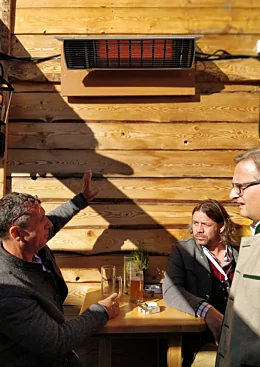

Yes, HEATSCOPE® weather-resistant infrared heaters are engineered for both residential and commercial applications, and are installed in restaurants, cafes, bars, and hospitality venues.

Commercial durability is built into the core components. Carbon fibre heating elements are rated for at least 10,000 hours of operation, and the aluminium chassis resists discolouration and tarnishing over years of continuous service. There are no ignition components, gas connections, valves, or hoses to maintain, reducing downtime and servicing complexity in high-use environments.

For multi-zone installations, a single remote pairs with multiple heaters, and ZigBee motion sensors automate zones to activate only when areas are occupied, helping manage energy use across large terrace or dining areas. All models accept wall and ceiling mounting, with extension rods in 100, 300, and 500 mm increments providing height flexibility across varying ceiling configurations such as marquees, pergolas, and outdoor dining pavilions.

For venue specification, HEATSCOPE®’s technical team provides schematic diagrams and tailored positioning guidance based on your space’s dimensions, wind exposure, and installation height. The general principle: more wind exposure and greater installation height call for higher-output models with stronger beam reach.

Two-stage output control lets weather-resistant HEATSCOPE radiant heaters switch between 100% and 50% power, so you can match heat delivery to conditions without turning the heater off. On a mild evening, 50% output keeps a patio comfortable while roughly halving energy draw; on colder nights, full power delivers the direct infrared warmth the heaters are engineered for.

The two levels are switchable from a wall switch, an included or optional 2-step infrared remote, or, with a WiFi wall switch, a smartphone and voice assistants like Alexa and Google Assistant. One remote can pair with multiple heaters, which is useful across larger covered areas or split zones in a restaurant or bar setting where different sections need different heat levels at once. ZigBee accessories extend this further on select models for motion-triggered or scene-based control.

Because HEATSCOPE heaters draw significant power at full output, the levels are fixed at 50% and 100%; a standard dimmer is not compatible. That fixed step is deliberate. It protects the heating elements and keeps infrared output stable and efficient at both settings.

Weather-resistant radiant heaters warm people and surfaces directly through infrared waves, while convection heaters warm the surrounding air, making radiant the practical choice for outdoor use. Air is largely transparent to mid-wave infrared, so the energy travels through open space and is absorbed by skin, tables, floors and nearby objects, much like warmth from the sun on a cool day.

Convection relies on still air to build a pocket of warmth around you. Outside, that pocket drifts away on the first breeze, taking comfort with it.

Heatscope's carbon spiral technology converts up to 94% of its energy into directed infrared heat, so warmth holds its focus even in exposed patios, courtyards and open-fronted venues. Start-up is near-instant, and because there is no flue or ventilation requirement, placement follows the design of the space rather than the other way around.

Direct heat transfer is the defining advantage of HEATSCOPE® radiant heaters. Unlike gas heating, which heats the air first and loses warmth to wind and surroundings, infrared heaters beam radiant heat directly to people and objects. You feel warmth in seconds rather than minutes, and wind does not steal the heat, a critical edge in outdoor settings.

Beyond heat delivery, electric infrared eliminates the infrastructure demands of gas. No gas lines, no flue or ventilation requirements, no specialist fitters. Wall or ceiling mounting takes two screws and a 220-240V circuit, freeing floor space and keeping heaters out of reach. Zero combustion byproducts mean the units are safe for enclosed outdoor spaces (patios under pergolas, covered dining areas, outdoor rooms) where ventilation limits would rule out gas.

The reliability advantage is significant. No valves, ignition components, or burners to service. No annual maintenance, seasonal prep, or gas-pressure issues. Silent operation with no fans stirring dust or allergens. One installation and the heater runs flawlessly year after year: the set-and-forget simplicity that appeals to hospitality operators and discerning homeowners alike.

When you compare the total ownership experience, including instant heat, no emissions, design freedom, and zero-service reliability, the case for radiant electric is compelling.

HEATSCOPE weather-resistant infrared heaters reach full output in under 15 seconds on most models; the glass-fronted range reaches comfortable warmth in under 60 seconds. You feel the warmth almost the moment the heater switches on, because infrared radiation travels through the air like sunlight and warms people and surfaces directly rather than heating the surrounding atmosphere.

That direct-to-body transfer is why outdoor patio heating with infrared behaves differently from a gas patio heater or a fan heater. There is no lag while the air temperature climbs, and almost no heat loss to wind or open sides of a pergola. Two practical benefits follow:

• Guests arriving to a cold terrace feel warmth within seconds of the heater being switched on, rather than waiting 20 to 30 minutes for air temperature to rise.
• Instant-on, instant-off operation means you only run the heater during occupied moments, keeping energy use close to actual occupancy time.

Carbon fibre elements are rated for at least 10,000 operating hours, and radiant efficiency across the range sits between 87 and 94 percent, so that fast warmth is delivered consistently across years of residential or commercial use.

Heatscope offers four ranges of weather-resistant electric infrared heaters, each engineered for different settings and design preferences. All use double carbon heating elements with two-stage output control and come in black or white with optional extension rods.

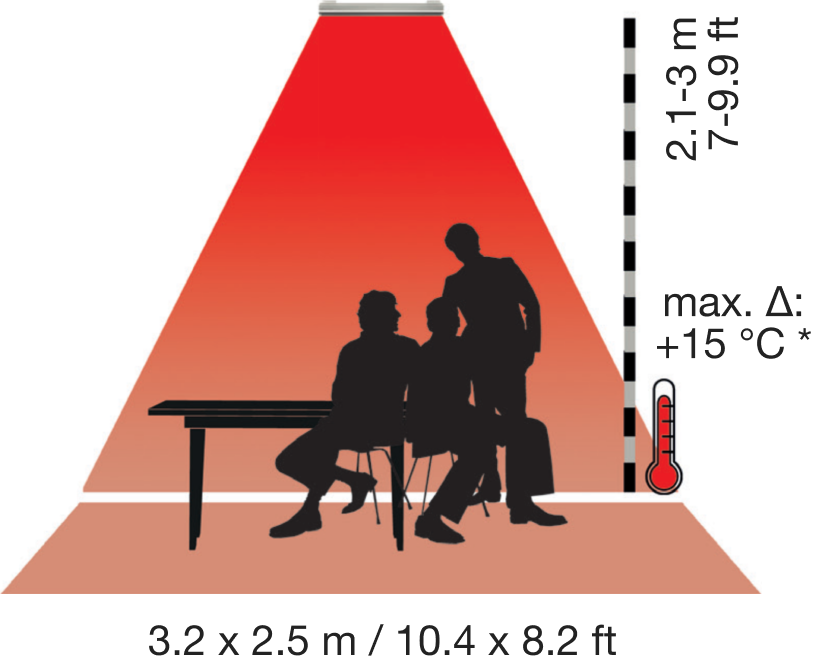

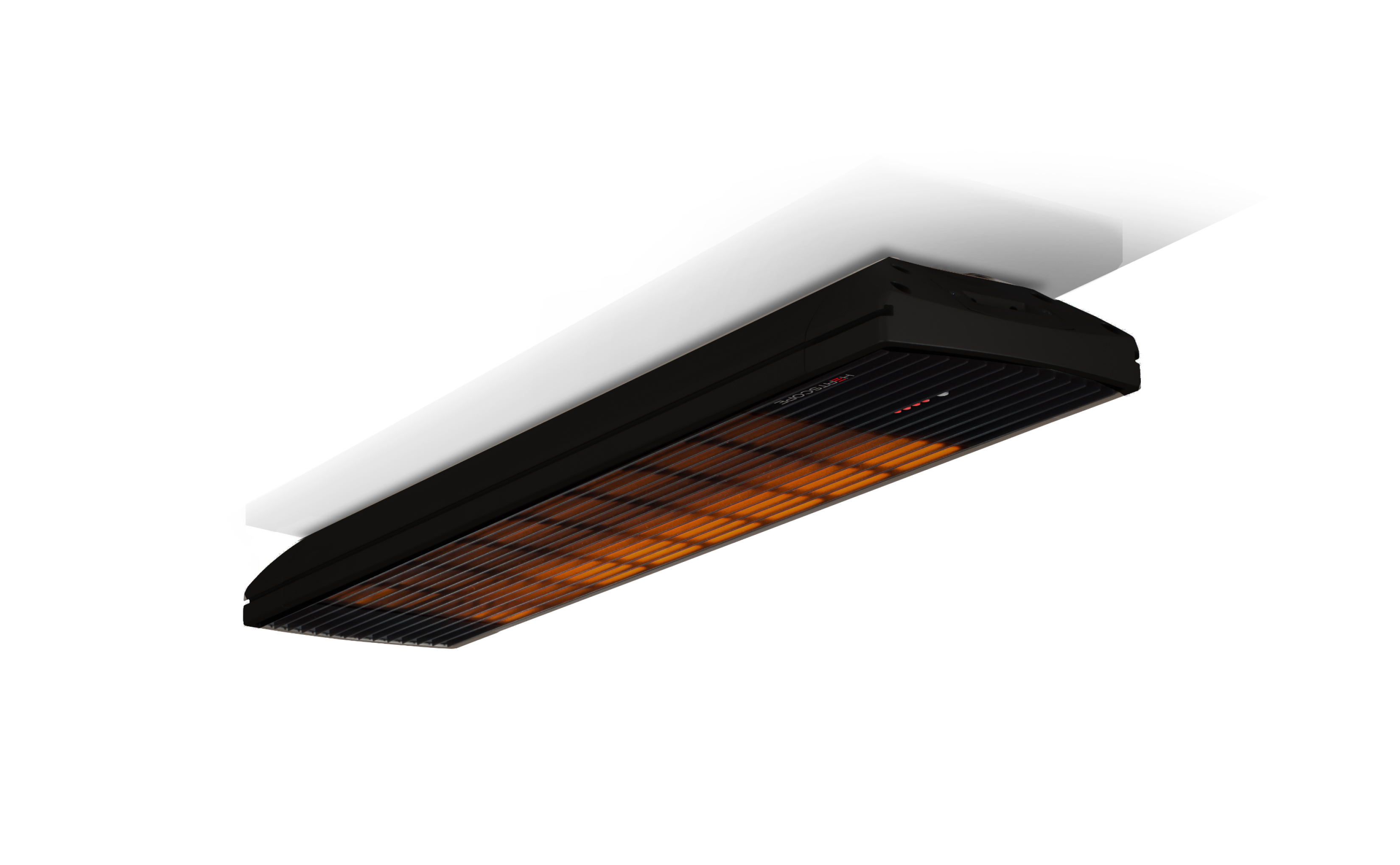

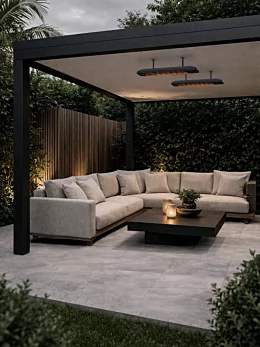

The Spot is the most compact, available in 1,600W or 2,800W, ideal for smaller spaces and directional warmth. Its ceramic glass front delivers radiant efficiency above 94%, with an IP24 rating suitable for covered outdoor areas.

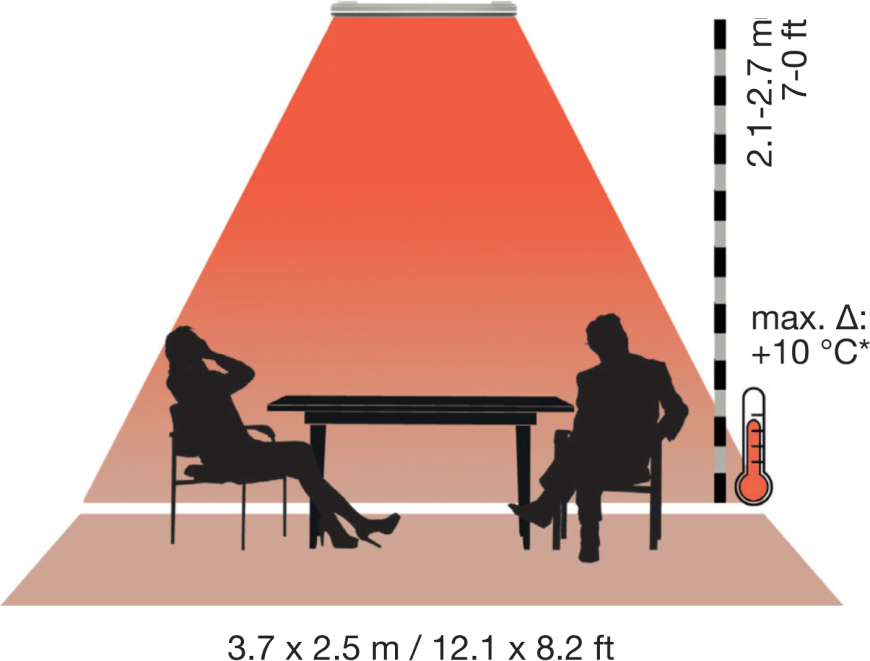

The Pure Plus is the most weather-resistant in the range, rated IP65 for fully exposed outdoor installation. This 3,000W heater features a convex glass-ceramic front and won a Red Dot Design Award in 2018.

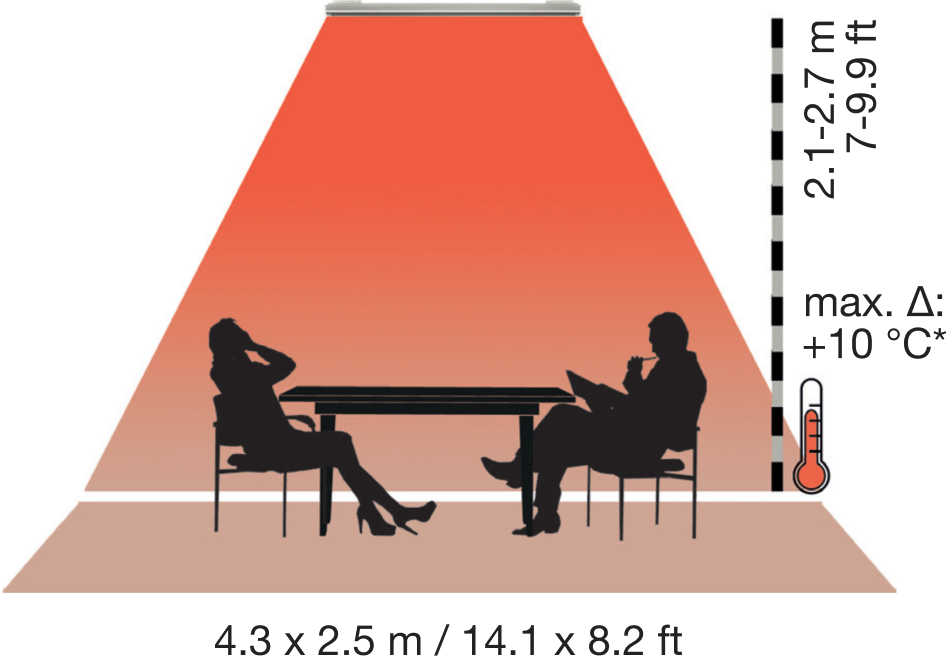

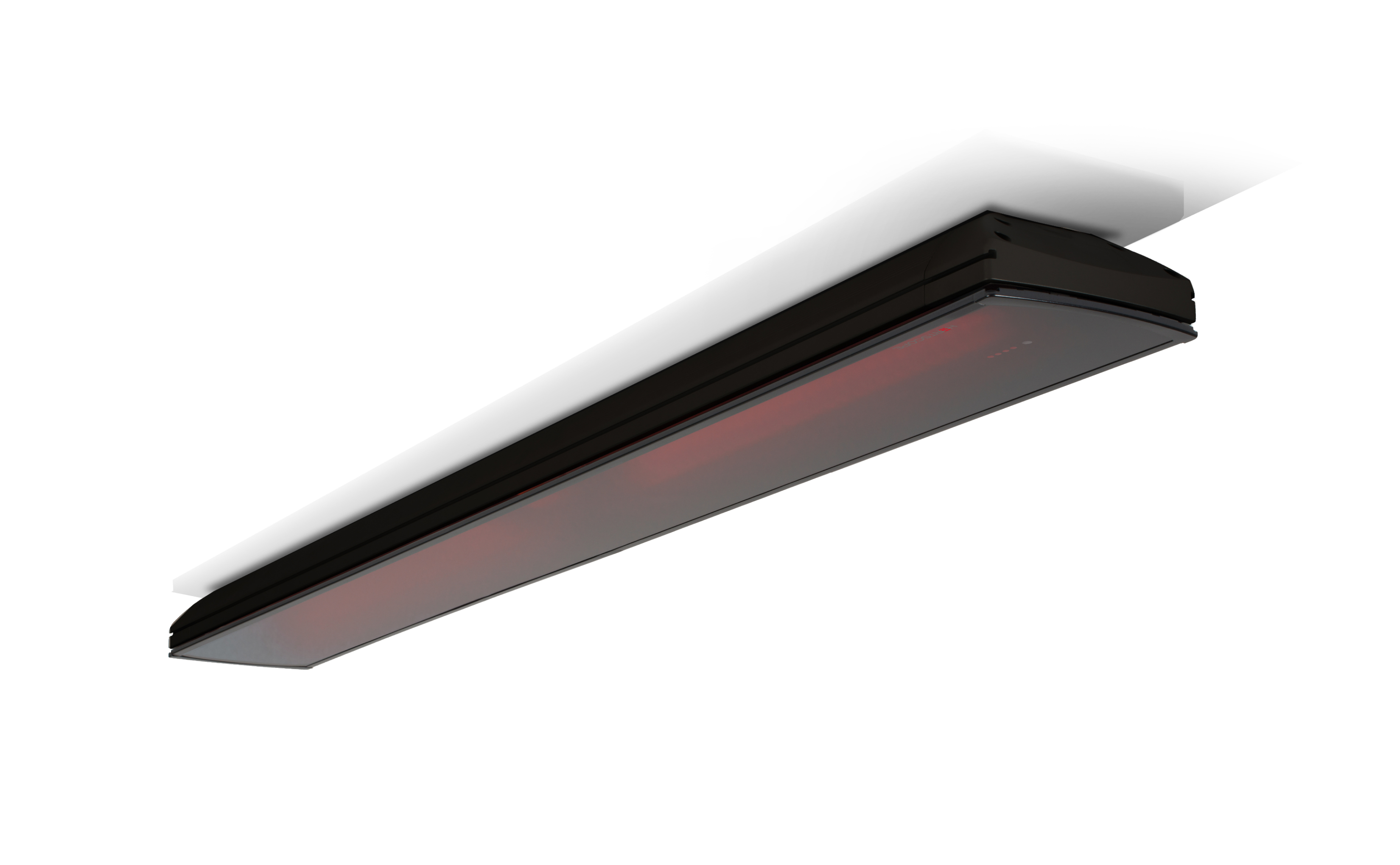

The Vision produces the highest output at 3,200W and runs the longest at 1,661 mm, creating ambient atmosphere alongside substantial warmth. Its minimal visible light (300 lm) suits settings where you want heat without visual prominence. It’s rated IP44.

The Next suits transitional spaces, including semi-enclosed terraces or indoor/outdoor transitions. Its 3,000W output and swivel-joint mount offer directional flexibility; its slim aluminium body fits tighter design schemes. It’s rated IP25.

All ranges include a 2-year warranty and optional ZigBee smart control.

HEATSCOPE® radiant heaters deliver direct heat transfer using mid-wave infrared technology that penetrates the first skin layers, creating genuine sun-like warmth rather than surface heating. Unlike many electric outdoor heaters that rely on short-wave infrared producing bright red glows and uncomfortable high-intensity heat, HEATSCOPE® heaters use colour-matched grill screens to reduce light output to just 30-40% of traditional radiant heaters. The Spot series produces approximately 600 lumens (per product specifications), whilst the Vision and Pure Plus ranges deliver less than 300 lumens, preserving outdoor ambience without harsh brightness.

The engineering differences extend to durability and materials. HEATSCOPE® heaters use carbon fibre heating elements and, in the Pure Plus range, SCHOTT NEXTREMA® premium convex glass, a material exclusivity among electric infrared heaters. The Pure model achieves IP65 weather resistance (dust and waterproof), exceeding the typical IPX5 rating of competitors, ensuring reliable outdoor performance across seasons.

For connected home environments, an optional ZigBee Bridge enables wireless control, motion sensors for automated triggering, and compatibility with Alexa and Google Assistant. An optional WiFi Smart Switch adds smartphone app control. Dual power levels at 50% and 100% output allow precise zone heating for energy efficiency without waste.

Direct heat transfer is the fundamental advantage of radiant heating, which warms people and objects in its path rather than heating the surrounding air. This delivers several distinct benefits: energy conversion rates of 87–94%, near-instant warmth within 15–60 seconds depending on the model, and silent operation with no moving parts. Radiant heaters produce no emissions, odours, or ash, and require no gas lines, flue systems, or ventilation infrastructure, making them ideal for retrofit installations and spaces where traditional heating isn’t practical.

The trade-off is directional coverage. Radiant heaters warm only the areas within their line-of-sight. Someone standing outside the beam path receives minimal benefit. This also means they function as zone heaters rather than whole-room ambient heating, effective for creating comfort zones in outdoor entertaining areas or specific indoor spaces, but less efficient for warming every corner of large rooms simultaneously. Covering expansive areas requires multiple units, which carries a higher upfront cost than a single centrally-mounted system. Installation demands appropriate electrical infrastructure (220–240V, professional installation), and in cold climates, multiple heaters may be necessary to achieve ambient comfort comparable to forced-air or hydronic systems.

Rather than limitations, many customers view these characteristics as precision advantages: the ability to heat only occupied spaces, reduce energy consumption, and extend the usable season in outdoor areas without the capital expense of full-home heating infrastructure.
