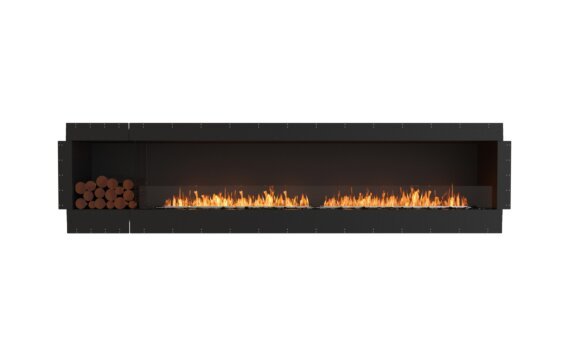

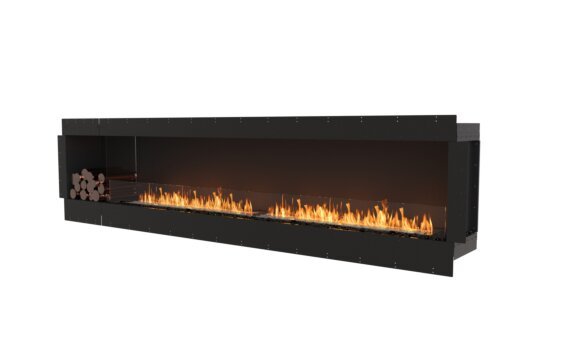

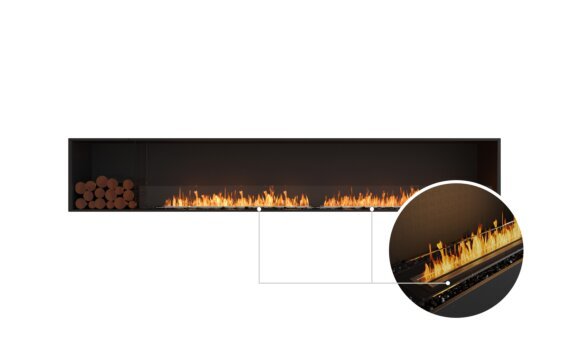

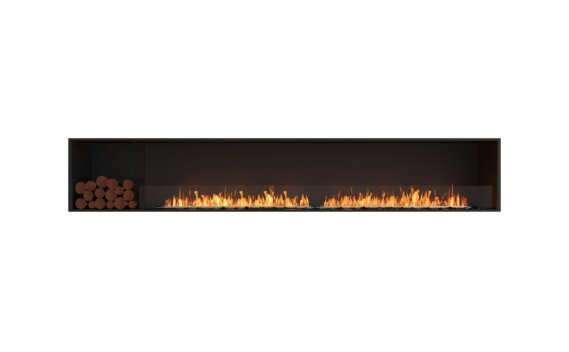

Flex 122SS.BXL Single Sided Fireplace Insert

Starts at C$20,895.00

Enjoy an alluring flame from any angle you look at it.

Specifically designed for a single room application, the Flex Single Sided Fireplace Insert features one open side, enabling the flame to be viewed from the front. The bioethanol, true zero-clearance fireplace can be used to create a striking addition to a feature wall, integrated within cabinetry or a fireplace setting - whether in a residential dining room, indoor or outdoor living area, or commercial spaces.

The Flex 122SS.BXL comes with a Decorative Box on the left-hand side. The design is fitted with a glass panel that divides the box and the Firebox and creates an attractive streamlined look. Instantly transform any wall into a feature, indoors or out, with a stylish, clean-lined Flex Firebox.

One of the longest flames available in the Flex Series is created by using 2 of our ever-popular XL1200 Burners. With an overall heating capacity of 1399ft2 this appliance is best suited to large open spaces - think hotel lobby, large open plan restaurants.

Each burner holds 2.6 gallons of fuel, and can deliver a stunning flame for up to 14 hours.

Manufacturer approved surround for the UL Listed XL1200 burner.

Configure & Buy

Buy online and get it delivered to your door.

Select Fuel Type*

Ethanol Ethanol Burner In Transit: 58 days
Ethanol  - Studio Image by MAD Design Group

Select Burner Colour*

Stainless Steel In Transit: 58 days
Stainless Steel  - Studio Image by MAD Design Group
Black In Stock: 3 days + C$1,400.00
Black  - Studio Image by MAD Design Group

Add Accessories

Log Set Copper Decorative Media - Studio Image by Blinde Design
Log Set Copper Backorder: 12-16 wks +C$395.00
Log Set Brass Decorative Media - Studio Image by Blinde Design
Log Set Brass Backorder: 12-16 wks +C$395.00
  • Included Accessories:
  • Jerry Can 1.25 Gal
  • Bottle Adaptor
  • XL Baffles
  • Black Glass Charcoal
  • Lighting Rod
  • Fire Lighter

Add e-NRG Bioethanol

How much fuel do I need?
e-NRG Bioethanol Bioethanol Fuel - Studio Image by MAD Design Group
e-NRG Bioethanol In Stock: Ready to ship From C$154.00
  • 4 Gal. 1 carton +C$154.00
  • 8 Gal. 2 cartons +C$302.00
  • 16 Gal. 4 cartons +C$585.00
  • 20 Gal. 5 cartons +C$712.00
  • 40 Gal. 10 cartons +C$1,309.00
  • 80 Gal. 20 cartons +C$2,156.00
  • 180 Gal. 45 cartons +C$4,505.00
*Quantities of 4, 8, 16 and 20 Gallons ship on quart-sized bottles.

Order Summary

C$20,895.00 Taxes may apply* Tax Information
C$2,000.00 Standard Delivery* Shipping Information
Unspecified Unspecified Ship Times
or use our express checkout options
* Taxes will be calculated at the checkout. Tax Information * Standard Shipping provides ground delivery to the curb. Shipping Information * All times, dates, and inventory levels are subject to change at anytime.

Inspiration

61fc757c8135d.jpg Open Gallery
Webb's joinery
61fc68884cbdf.jpg Open Gallery
Webb's joinery
61fc67e63a894.jpg Open Gallery
Webb's joinery
61fc677da53c5.jpg Open Gallery
Webb's joinery

Key Features

Application

Indoor or outdoor single room application. With one open side, view the flame from the front.

Colours

Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.

No gas or electricity

No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.

Clean burning

All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney

Zero clearance

Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.

Quick and easy assembly

Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.

Rust proof

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.

Luxurious finish

Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.

Decorative side box

Includes one decorative side box to fill with your chosen noncombustible accessory.

Optional log sets

Eye-catching accessory for the decorative side box. Made from stainless steel with a patina finish, they are available in two different finishes: Brass or Copper.

Wind screen

Included integrated windscreen sits flush behind frame.

Technical Specifications

Construction

  • Weight 375lb [170kg]
  • Model Dimensions in [mm] W 130in [3310mm] D 14.4in [365mm] H 31.8in [807mm]
  • Viewing Area in [mm] W 122in [3110mm] D 13.4in [340mm] H 19.8in [502mm]
  • Materials Mild Steel & Toughened Glass
  • Colours
Our fireboxes are manufactured to the highest standards and in accordance with ISO 9001:2008.

Accessories

Includes everything you need to easily operate and protect your investment for many years to come.

Fuel Efficiency

Volume Capacity
2.6 Gal
10 L
Heats on Average
700ft2
65m2
Minimal Room
4061ft3
115m3
Thermal Output
15290 BTU/h
4.5 kW 17 MJ/h
Burn Time
9-14h
2.6 Gallons
* These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country.

Product Reviews

FAQ's

View All

What maintenance is required for ethanol fireplaces?

Clean your EcoSmart Fire unit after you have used 50 liters [13.20 Gal.] of fuel or as soon as you notice black deposits on or near the burner of the ethanol fireplace. Black marks can be removed from the stone, solid surfaces or stainless steel with a mild abrasive washing product such as JIF or similar. It is recommended to test a small area first to ensure the cleaning product chosen is appropriate and will not mark or damage the surface. Burners can be washed as required in hot soapy water (even in your dishwasher) from time to time and the internal mechanics won’t deteriorate like some other brands as all internal parts are stainless steel.

Do ethanol fireplaces smell?

All heating appliances have their own smell be it gas, wood or electric - ethanol fireplaces are no different. e-NRG ethanol fuel is made of fermented plants like sugarcane or corn and is essentially a liquid alcohol. To safely make “de-natured” and unfit for consumption, substances have been added. The burning of these substances may cause a slight smell upon initial lighting and when the flame is extinguished – similar to when you blow out a candle. e-NRG ethanol fuel is the only fuel recommended for your EcoSmart Fire ethanol fireplace. e-NRG ethanol fuel has the lowest odor and longest burn time on the market. The nice thing about using ethanol is that it’s not dry like gas or smokey like wood.

How to install a TV or AV equipment above an ethanol fireplace?

This design can be achieved as long as the TV is protected. You have 3 possible solutions:

Solution 1: The TV needs a non-combustible mantel/ledge to act as a heat shield

Solution 2: The TV needs to be recessed in a niche

Solution 3: The TV needs to sit back off the level of the flame

How to position your TV

How long will my ethanol fireplace burn?

Burn times for our ethanol fireplaces vay based on flame size and fuel capacity of the burner. EcoSmart Fire’s ethanol fireplaces will burn between 8-13 hours when full.

Why use bioethanol?

Bioethanol, a renewable energy, is the cleanest and most efficient fuel on the market, which means there are no emissions and no soot or ash to clean up.

Are ethanol fireplace inserts difficult to install?

Unlike gas fireplaces or traditional wood burning fireplaces, our ethanol fireplace inserts require no venting, no gas line, no electricity - eliminating the need and cost of three sub contractors. They are simply mounted into the constructed main wall framework with the appropriate opening size for the fireplace insert selected. EcoSmart Fire’s ethanol fireplace inserts are extremely flexible and can be incorporated at any stage of your interior decorating, renovating or building works. For detailed specifications please contact us.

How much does it cost to maintain an ethanol fireplace?

EcoSmart Fire’s ethanol fireplaces require little maintenance. It is important to keep the lid closed when not in use to keep debris out of the ethanol burner that can cause corrosion and damages. The 304 stainless steel tank is built to last a lifetime if proper cleaning procedures are done when needed.

Is their heat output similar to a gas heater?

Burning bioethanol is similar to gas, but the room doesn't dry out like it does with gas - a more gentle, softer heat is created. Heat-wise, it depends on the models being compared. Some of our bioethanol burners output 15,000 BTU and can heat up to 60sqm of living space. Bioethanol is not, however, on an adjustable thermostat. Some may be turned up and down, but you can't control the room temperature in the same way as you do with gas on mains
