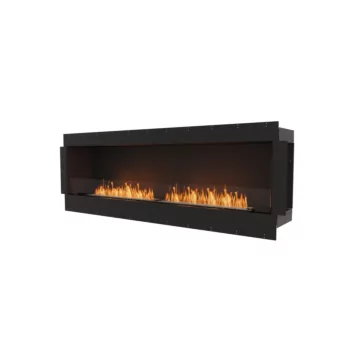

Flex 86SS.BXR Single Sided Fireplace Insert

Starts at C$14,895.00
Write a Review

Enjoy an alluring flame from any angle you look at it.

Specifically designed for a single room application, the Flex Single Sided Fireplace Insert features one open side, enabling the flame to be viewed from the front. The bioethanol, true zero-clearance fireplace can be used to create a striking addition to a feature wall, integrated within cabinetry or a fireplace setting - whether in a residential dining room, indoor or outdoor living area, or commercial spaces.

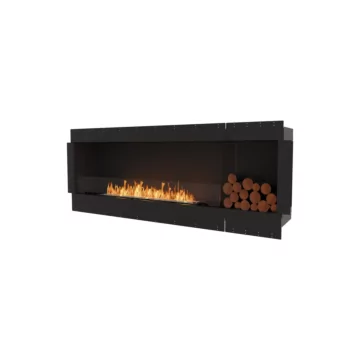

The Flex 86SS.BXR comes with a Decorative Box on the right-hand side. The design is fitted with a glass panel that divides the box and the Firebox and creates an attractive streamlined look. Instantly transform any wall into a feature, indoors or out, with a stylish, clean-lined Flex Firebox.

The longest of the XL Burner series, the XL1200 delivers a stunning linear flame. This elongated burner can heat up to 700ft2 and provides the ideal bioethanol fire for commercial and hospitality spaces such as open plan restaurants and bars.

Each burner holds 2.6 gallons of fuel, and can deliver a stunning flame for up to 14 hours.

Manufacturer approved surround for the UL Listed XL1200 burner.

Configure & Buy

Buy online and get it delivered to your door.

Select Fuel Type*

Ethanol Ethanol Burner Backorder: 12-16 wks
Ethanol  - Studio Image by MAD Design Group

Select Burner Colour*

Stainless Steel Backorder: 12-16 wks
Stainless Steel  - Studio Image by MAD Design Group
Black In Stock: 3 days + C$700.00
Black  - Studio Image by MAD Design Group

Add Accessories

Log Set Copper Decorative Media - Studio Image by Blinde Design
Log Set Copper Backorder: 12-16 wks +C$395.00
Log Set Brass Decorative Media - Studio Image by Blinde Design
Log Set Brass Backorder: 12-16 wks +C$395.00
  • Included Accessories:
  • XL Baffles
  • Black Glass Charcoal
  • Bottle Adaptor
  • Jerry Can 1.25 Gal
  • Lighting Rod
  • Fire Lighter

Add e-NRG Bioethanol

How much fuel do I need?
e-NRG Bioethanol Bioethanol Fuel - Studio Image by MAD Design Group
e-NRG Bioethanol In Stock: Ready to ship From C$154.00
  • 4 Gal. 1 carton +C$154.00
  • 8 Gal. 2 cartons +C$302.00
  • 16 Gal. 4 cartons +C$585.00
  • 20 Gal. 5 cartons +C$712.00
  • 40 Gal. 10 cartons +C$1,309.00
  • 80 Gal. 20 cartons +C$2,156.00
  • 180 Gal. 45 cartons +C$4,505.00
*Quantities of 4, 8, 16 and 20 Gallons ship on quart-sized bottles.

Order Summary

C$14,895.00 Taxes may apply* Tax Information
POA Shipping Standard Delivery*
Continental USA
Shipping Information
Unspecified Unspecified Ship Times
or use our express checkout options
* Taxes will be calculated at the checkout. Tax Information * Standard Shipping provides ground delivery to the curb. Shipping Information * All times, dates, and inventory levels are subject to change at anytime.

Inspiration

61fc757c8135d.jpg Open Gallery
Webb's joinery
61fc68884cbdf.jpg Open Gallery
Webb's joinery
61fc67e63a894.jpg Open Gallery
Webb's joinery
61fc677da53c5.jpg Open Gallery
Webb's joinery
EcoSmart Flex_68SS Drummoyne AU 3.jpg Open Gallery
Webb's joinery

Key Features

Application

Indoor or outdoor single room application. With one open side, view the flame from the front.

Colours

Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.

No gas or electricity

No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.

Clean burning

All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney

Zero clearance

Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.

Quick and easy assembly

Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.

Rust proof

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.

Luxurious finish

Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.

Decorative side box

Includes one decorative side box to fill with your chosen noncombustible accessory.

Optional log sets

Eye-catching accessory for the decorative side box. Made from stainless steel with a patina finish, they are available in two different finishes: Brass or Copper.

Wind screen

Included integrated windscreen sits flush behind frame.

Technical Specifications

Construction

  • Weight 263lb [119kg]

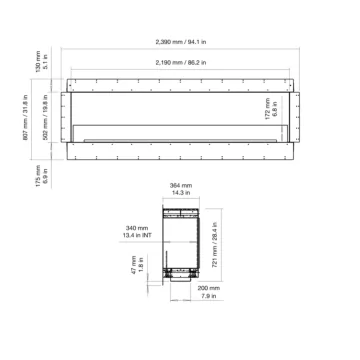

  • Model Dimensions in [mm] W 94.1in [2390mm] D 14.4in [365mm] H 31.8in [807mm]
  • Viewing Area in [mm] W 86.2in [2190mm] D 13.4in [340mm] H 19.8in [502mm]
  • Materials Mild Steel & Toughened Glass
  • Colours
Our fireboxes are manufactured to the highest standards and in accordance with ISO 9001:2008.

Accessories

Includes everything you need to easily operate and protect your investment for many years to come.

Fuel Efficiency

Volume Capacity
2.6 Gal
10 L
Heats on Average
700ft2
65m2
Minimal Room
4061ft3
115m3
Thermal Output
15290 BTU/h
4.5 kW 17 MJ/h
Burn Time
9-14h
2.6 Gallons
* These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country.

FAQ's

View All

Do ethanol fireplaces smell?

All heating appliances have their own smell be it gas, wood or electric - ethanol fireplaces are no different. e-NRG ethanol fuel is made of fermented plants like sugarcane or corn and is essentially a liquid alcohol. To safely make “de-natured” and unfit for consumption, substances have been added. The burning of these substances may cause a slight smell upon initial lighting and when the flame is extinguished – similar to when you blow out a candle. e-NRG ethanol fuel is the only fuel recommended for your EcoSmart Fire ethanol fireplace. e-NRG ethanol fuel has the lowest odor and longest burn time on the market. The nice thing about using ethanol is that it’s not dry like gas or smokey like wood.

Do I need to service my ethanol fireplace in any way?

Yes, normal maintenance and care is very important! Instructions are included in the Installation, Operating and Maintenance Manual supplied with your EcoSmart Fire product.

How do I clean my EcoSmart Fire ethanol burner?

Cleaning of the ethanol burner should be done only after you have used 50 litres of fuel or as soon as you notice a black residue forming around or on the burner. Before starting, make sure the burner is off, empty of ethanol, and at room temperature. Spray a multi-purpose cleaner on the surface of the burner and wipe with cloth, making sure to wipe in the direction of the grain. If material has fallen into the ethanol fireplace burner use a vacuum cleaner to remove debris through the burner opening. If your burner smells unusually strong after extensive use, remove the empty and room temperature burner from its surround and wash in hot, soapy water. Rinse thoroughly under running water and wait until the burner is completely dry before placing it back into its surround and reusing. View this video of the simple cleaning process here: https://youtu.be/VqHg9mXOc0U

Note: Stainless steel will rust or corrode over time if contamination or debris is not cleaned or removed immediately. When not in use, we recommend that you protect your ethanol fireplace from water damage or corrosion with a protective cover and the regular use of the burner lid included with your model.

What is bioethanol fuel?

Bioethanol (also known as methylated spirits or simply ethanol) is a form of renewable energy. It’s a clear, colourless liquid that’s commonly made from fermenting the sugar and starch components of plant by-products like sugarcane and grain crops.

Why use bioethanol?

Bioethanol, a renewable energy, is the cleanest and most efficient fuel on the market, which means there are no emissions and no soot or ash to clean up.

How long does it take to assemble?

There is virtually no assembly. Our Freestanding and Fireplace Grates ranges are designed to be placed into the desired location, secured into position, and operated immediately. Our Fireplace Inserts are designed to slot into place, secured and built around with your preferred finish – again a quick and easy installation – so your builder or interior designer will love you!

The longest part of the setup process is trying to figure out where you want to place it – be sure it complies with our clearance requirements particularly with regard to moving objects like curtains, tree branches and so forth.

Is their heat output similar to a gas heater?

Burning bioethanol is similar to gas, but the room doesn't dry out like it does with gas - a more gentle, softer heat is created. Heat-wise, it depends on the models being compared. Some of our bioethanol burners output 15,000 BTU and can heat up to 60sqm of living space. Bioethanol is not, however, on an adjustable thermostat. Some may be turned up and down, but you can't control the room temperature in the same way as you do with gas on mains

Is Bioethanol easily obtainable?

Yes, you can have fuel delivered to public and private premises in many countries - many hardware stores even stock it.
