Flex 140SS.BXL Single Sided Fireplace Insert

Starts at C$24,195.00

Enjoy an alluring flame from any angle you look at it.

Specifically designed for a single room application, the Flex Single Sided Fireplace Insert features one open side, enabling the flame to be viewed from the front. The bioethanol, true zero-clearance fireplace can be used to create a striking addition to a feature wall, integrated within cabinetry or a fireplace setting - whether in a residential dining room, indoor or outdoor living area, or commercial spaces.

The Flex 104SS.BXL comes with a Decorative Box on the left-hand side. The design is fitted with a glass panel that divides the box and the Firebox and creates an attractive streamlined look. Instantly transform any wall into a feature, indoors or out, with a stylish, clean-lined Flex Firebox.

One of the longest flames available in the Flex Series is created by using 2 of our ever-popular XL900 Burners. With an overall heating capacity of 1292ft2 this appliance is best suited to large open spaces - think hotel lobby, large open plan restaurants.

Each burner holds 2.4 gallons of fuel, and can deliver a stunning flame for up to 13 hours.

O-TL Listed in accordance with UL 1370.

Configure & Buy

Buy online and get it delivered to your door.

Select Fuel Type*

Ethanol Ethanol Burner In Stock: 3 days
Ethanol  - Studio Image by MAD Design Group

Select Burner Colour*

Stainless Steel In Stock: 3 days
Stainless Steel  - Studio Image by MAD Design Group
Black In Transit: 32 days + C$2,100.00
Black  - Studio Image by MAD Design Group

Add Accessories

Log Set Copper Decorative Media - Studio Image by Blinde Design
Log Set Copper Backorder: 12-16 wks +C$395.00
Log Set Brass Decorative Media - Studio Image by Blinde Design
Log Set Brass Arriving Soon: 7 days +C$395.00
  • Included Accessories:
  • Lighting Rod
  • Jerry Can 1.25 Gal
  • Bottle Adaptor
  • XL Baffles
  • Black Glass Charcoal
  • Fire Lighter

Add e-NRG Bioethanol

How much fuel do I need?
e-NRG Bioethanol Bioethanol Fuel - Studio Image by MAD Design Group
e-NRG Bioethanol In Stock: Ready to ship From C$154.00
  • 4 Gal. 1 carton +C$154.00
  • 8 Gal. 2 cartons +C$302.00
  • 16 Gal. 4 cartons +C$585.00
  • 20 Gal. 5 cartons +C$712.00
  • 40 Gal. 10 cartons +C$1,309.00
  • 80 Gal. 20 cartons +C$2,156.00
  • 180 Gal. 45 cartons +C$4,505.00
*Quantities of 4, 8, 16 and 20 Gallons ship on quart-sized bottles.

Order Summary

C$24,195.00 Taxes may apply* Tax Information
C$2,000.00 Standard Delivery* Shipping Information
Unspecified Unspecified Ship Times
or use our express checkout options
* Taxes will be calculated at the checkout. Tax Information * Standard Shipping provides ground delivery to the curb. Shipping Information * All times, dates, and inventory levels are subject to change at anytime.

Inspiration

ecosmart flex50ss syrenuse_apartments qld.jpg Open Gallery
Giarola Architects, Recom Building
EcoSmart FX50SS Private_Residence Interfar 1a AUS.jpg Open Gallery
Interfar Custom furniture & CBRE
EcoSmart FX50SS Private_Residence Interfar 2a AUS.jpg Open Gallery
Interfar Custom furniture & CBRE
EcoSmart FX50SS Private_Residence Interfar 3 AUS.jpg Open Gallery
Interfar Custom furniture & CBRE

Key Features

Application

Indoor or outdoor single room application. With one open side, view the flame from the front.

Colours

Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.

No gas or electricity

No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.

Clean burning

All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney

Zero clearance

Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.

Quick and easy assembly

Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.

Rust proof

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.

Luxurious finish

Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.

Decorative side box

Includes two decorative side boxes to fill with your chosen noncombustible accessory.

Optional log sets

Eye-catching accessory for the decorative side box. Made from stainless steel with a patina finish, they are available in two different finishes: Brass or Copper.

Wind screen

Included integrated windscreen sits flush behind frame.

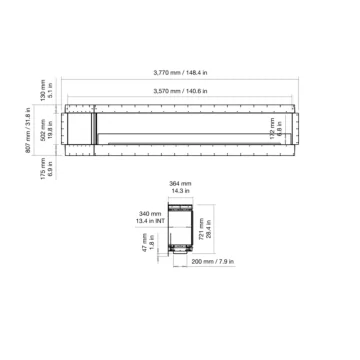

Technical Specifications

Construction

  • Weight 430lb [195kg]
  • Model Dimensions in [mm] W 148in [3770mm] D 14.4in [365mm] H 31.8in [807mm]
  • Viewing Area in [mm] W 141in [3570mm] D 13.4in [340mm] H 19.8in [502mm]
  • Materials Mild Steel & Toughened Glass
  • Colours
Our fireboxes are manufactured to the highest standards and in accordance with ISO 9001:2008.

Accessories

Includes everything you need to easily operate and protect your investment for many years to come.

Fuel Efficiency

Volume Capacity
2.4 Gal
9 L
Heats on Average
646ft2
60m2
Minimal Room
3885ft3
110m3
Thermal Output
15000 BTU/h
4.4 kW 16 MJ/h
Burn Time
8-13h
2.4 Gallons
* These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country.

Product Reviews

FAQ's

View All

Do bioethanol fireplaces produce heat?

Yes, although it does depend upon the size of the fireplace and also the size of the room itself. But a fire of an appropriate size can produce a good level of heat when considered properly in terms of its actual output and how it is positioned in the space. Bioethanol fires are a secondary source of heat that deliver a myriad of lifestyle benefits that can’t be achieved from primary heat sources such as radiators or reverse cycle air conditioning.

What is bioethanol fuel?

Bioethanol (also known as methylated spirits or simply ethanol) is a form of renewable energy. It’s a clear, colourless liquid that’s commonly made from fermenting the sugar and starch components of plant by-products like sugarcane and grain crops.

How much does it cost to maintain an ethanol fireplace?

EcoSmart Fire’s ethanol fireplaces require little maintenance. It is important to keep the lid closed when not in use to keep debris out of the ethanol burner that can cause corrosion and damages. The 304 stainless steel tank is built to last a lifetime if proper cleaning procedures are done when needed.

What are some key benefits – compared to other heating options?

When you choose ethanol as your fuel source over gas or wood, you are totally simplifying your installation requirements and costs. There's no flue or chimney required when burning ethanol, which means that you have the ultimate in design flexibility to achieve an open fire in so many more areas of your home - both indoors and out.

Is their heat output similar to a gas heater?

Burning bioethanol is similar to gas, but the room doesn't dry out like it does with gas - a more gentle, softer heat is created. Heat-wise, it depends on the models being compared. Some of our bioethanol burners output 15,000 BTU and can heat up to 60sqm of living space. Bioethanol is not, however, on an adjustable thermostat. Some may be turned up and down, but you can't control the room temperature in the same way as you do with gas on mains

Can EcoSmart Fires be installed everywhere?

Almost everywhere! EcoSmart Fires cannot be installed into small rooms that are less than our minimum room size which is burner specific. For all other installations, you must comply with our compulsory clearances and installation instructions. Approval from building authorities may be required prior to installation in your area. Please make sure you contact appropriate parties before installing your EcoSmart Fire.

How to install a TV or AV equipment above an ethanol fireplace?

This design can be achieved as long as the TV is protected. You have 3 possible solutions:

Solution 1: The TV needs a non-combustible mantel/ledge to act as a heat shield

Solution 2: The TV needs to be recessed in a niche

Solution 3: The TV needs to sit back off the level of the flame

How to position your TV

Are ethanol fireplace inserts difficult to install?

Unlike gas fireplaces or traditional wood burning fireplaces, our ethanol fireplace inserts require no venting, no gas line, no electricity - eliminating the need and cost of three sub contractors. They are simply mounted into the constructed main wall framework with the appropriate opening size for the fireplace insert selected. EcoSmart Fire’s ethanol fireplace inserts are extremely flexible and can be incorporated at any stage of your interior decorating, renovating or building works. For detailed specifications please contact us.
