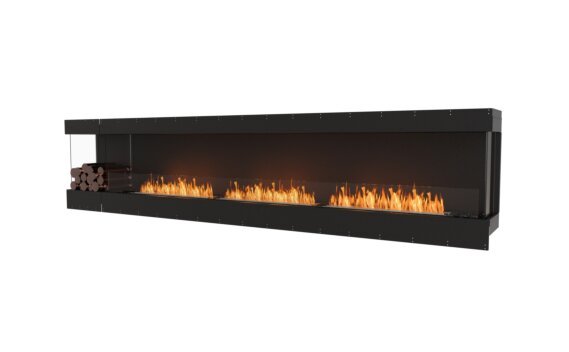

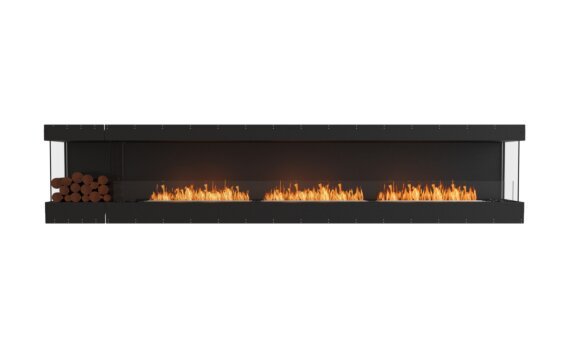

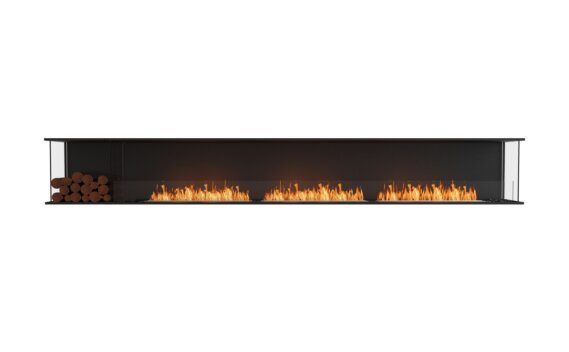

Flex 140BY.BXL Bay Fireplace Insert
Enjoy an alluring flame from any angle you look at it.
The Bay Fireplace Insert is designed for single room installation and features three open sides that enable the hypnotic flame to be viewed from the front and both left and right sides, providing an alluring focal point from multiple vantage points.
The Flex Bay fireboxes are ideal for commercial spaces like restaurants, bars and cafes, and residential settings where a stunning centrepiece is needed.
The Flex 140BY.BXL comes with a Decorative Box on the left-hand side. The design is fitted with a glass panel that divides the box and the Firebox and creates an attractive streamlined look. Instantly transform any wall into a feature, indoors or out, with a stylish, clean-lined Flex Firebox.
One of the longest flames available in the Flex Series is created by using 3 of our ever-popular XL900 Burners. With an overall heating capacity of 1938ft2 this appliance is best suited to large open spaces - think hotel lobby, large open plan restaurants.
Each burner holds 2.4 gallons of fuel, and can deliver a stunning flame for up to 13 hours.
Configure & Buy
Buy online and get it delivered to your door.Inspiration
Key Features
Application
Indoor or outdoor single room application. With three open side, view the flame from multiple vantage points.
Colours
Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.
No gas or electricity
No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.
Clean burning
All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney
Zero clearance
Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.
Quick and easy assembly
Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.
Rust proof
Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.
Luxurious finish
Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.
Decorative side box
Includes one decorative side box to fill with your chosen noncombustible accessory.
Optional log sets
Eye-catching accessory for the decorative side box. Made from stainless steel with a patina finish, they are available in two different finishes: Brass or Copper.
Wind screen
Included integrated windscreen sits flush behind frame.
Technical Specifications
Construction
- Weight 431lb [196kg]
- Model Dimensions in [mm] W 143.8in [3653mm] D 14.4in [365mm] H 31.8in [807mm]
- Viewing Area in [mm] W 140.2in [3560mm] D 13.4in [340mm] H 19.8in [502mm]
- Materials Mild Steel & Toughened Glass
- Colours
Accessories
Includes everything you need to easily operate and protect your investment for many years to come.Fuel Efficiency
Volume Capacity
Heats on Average
Minimal Room
Thermal Output
Burn Time
FAQ's
View AllWhat are some key benefits – compared to other heating options?
When you choose ethanol as your fuel source over gas or wood, you are totally simplifying your installation requirements and costs. There's no flue or chimney required when burning ethanol, which means that you have the ultimate in design flexibility to achieve an open fire in so many more areas of your home - both indoors and out.
How long does it take to assemble?
There is virtually no assembly. Our Freestanding and Fireplace Grates ranges are designed to be placed into the desired location, secured into position, and operated immediately. Our Fireplace Inserts are designed to slot into place, secured and built around with your preferred finish – again a quick and easy installation – so your builder or interior designer will love you!
The longest part of the setup process is trying to figure out where you want to place it – be sure it complies with our clearance requirements particularly with regard to moving objects like curtains, tree branches and so forth.
Where is the best place to install an ethanol fireplace?
Our ethanol fireplaces can be installed virtually anywhere - in walls, cabinets, high rise buildings, commercial / residential / hospitality spaces, indoors and outdoors. Because EcoSmart Fire’s ethanol fireplaces are ventless, they require no gas line, no electricity, and no chimney for a hassle free and cost effective installation. Our ethanol fireplaces have been designed and tested with safety as our top priority. We have outlined requirements for each ethanol burner, ethanol fireplace insert, and ethanol freestanding fireplace in our collection. These guidelines include minimum room size requirements and clearance recommendations for flammable materials and movable objects. Please refer to our manual for more information.
What is a bioethanol fireplace?
A Bioethanol fireplace is an open fireplace that is fueled by bioethanol. A real flame is produced by the lighting of bioethanol, with a by-product being heat in the process. It is a fireplace that needs no flue for exhausting emissions, no utilities such as electricity or gas connection, and it uses a sustainable fuel source.
How does an ethanol fireplace work?
EcoSmart Fire’s ethanol fireplaces are self-contained, burning bioethanol fuel that is housed within the stainless steel container. A flame regulator controls and stabilizes the flame. With a designated filling area, and easy shut off mechanism, you can ignite the flame and turn it off in a matter of seconds. View this quick demonstration video to help illustrate the process.
How do I clean my EcoSmart Fire ethanol burner?
Cleaning of the ethanol burner should be done only after you have used 50 litres of fuel or as soon as you notice a black residue forming around or on the burner. Before starting, make sure the burner is off, empty of ethanol, and at room temperature. Spray a multi-purpose cleaner on the surface of the burner and wipe with cloth, making sure to wipe in the direction of the grain. If material has fallen into the ethanol fireplace burner use a vacuum cleaner to remove debris through the burner opening. If your burner smells unusually strong after extensive use, remove the empty and room temperature burner from its surround and wash in hot, soapy water. Rinse thoroughly under running water and wait until the burner is completely dry before placing it back into its surround and reusing. View this video of the simple cleaning process here: https://youtu.be/VqHg9mXOc0U
Note: Stainless steel will rust or corrode over time if contamination or debris is not cleaned or removed immediately. When not in use, we recommend that you protect your ethanol fireplace from water damage or corrosion with a protective cover and the regular use of the burner lid included with your model.
Is Bioethanol easily obtainable?
Yes, you can have fuel delivered to public and private premises in many countries.
What is bioethanol fuel?
Bioethanol (also known as methylated spirits or simply ethanol) is a form of renewable energy. It’s a clear, colourless liquid that’s commonly made from fermenting the sugar and starch components of plant by-products like sugarcane and grain crops.
